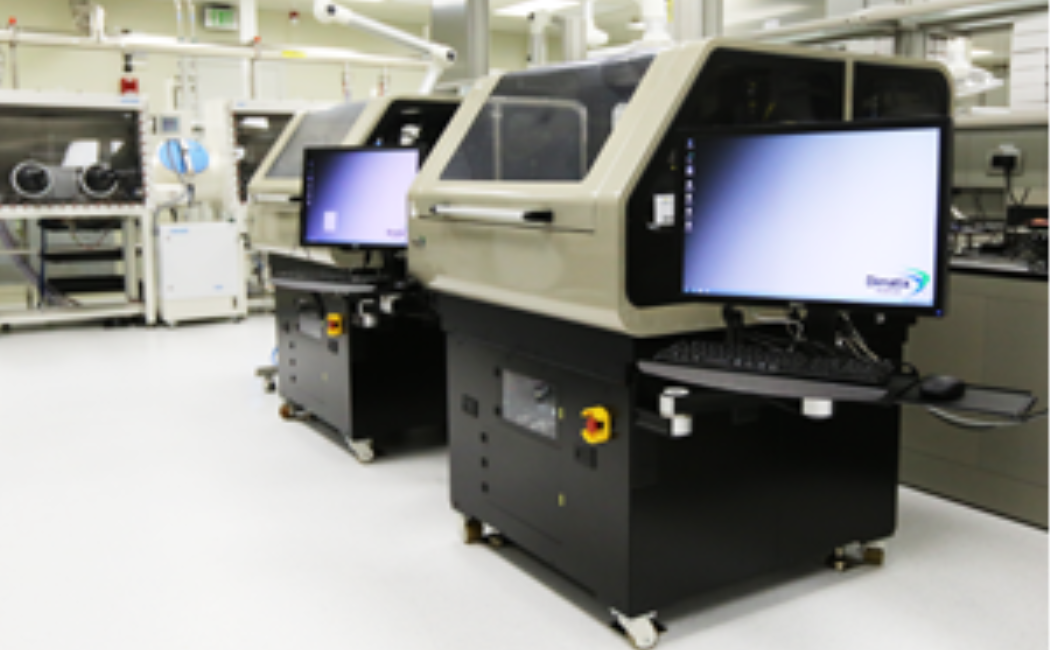

Inkjet Printer

Brand: Dimatix

Model: DMP-3000

​The DMP-3000 features a larger printable area of 300 x 300 mm with a positional accuracy and repeatability of ± 5 µm and ± 1 µm, respectively. The DMP-3000 uses a temperature controlled vacuum platen to accurately register, maintain and thermally manage substrates during printing. The printer includes an integrated drop visualization system that captures droplet formation images dynamically as droplet ejection parameters are adjusted to produce a tuned printhead and fluid combination. Also, sophisticated electronics allow the printhead to be calibrated on a per nozzle basis to compensate for any channel-to-channel variability. A second camera system allows substrate measurements and alignment, observations of fluid drying behavior, and droplet measurement and placement calculations.​
